Laser Welding Equipment

A world leader in the production of laser welding machines

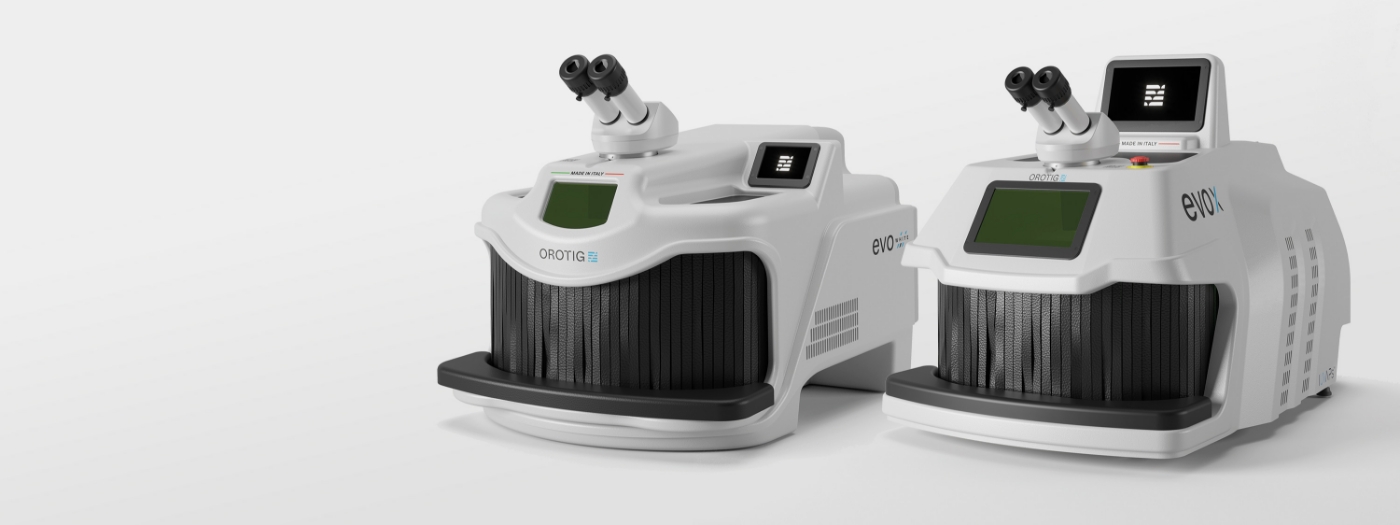

Evo White Evo X

Want to see them in action? Book a demo!

About Orotig Laser Welders

At Cooksongold, we’re always looking for ways to help jewellery maker’s lives easier. That is why we’re thrilled to present the EVO X and EVO White, extremely efficient laser welding machines. With a two-year warranty, it provides everything you need to weld smaller, cleaner, deeper and of a higher quality than through traditional welding techniques.

Book free demo
Orotig Evo X Laser Welding Machine in use

Compare Orotig
welding machines

Two great machines

Which laser welder is the right for you?

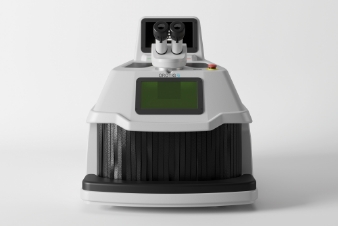

Orotig evo white product shot Orotig evo x product shot
  • Ergonomic Armrest
  • Up to 5 hour daily usage
  • LEICA 10 X 45° with crosshair
  • Custom presets
  • UV-C lamp
  • Records and saves photos / videos to USB stick or local memory
  • Live playback on external screen via HDMI
  • Ability play photos / videos / music on screen

EVO White

Shop now

EVO X

Shop now
laser welding machine display

The advantages of welding

  • Extraordinary cleanliness and precision of work
  • High processing speed
  • Minimum heat input
  • Excellent welding aesthetics
  • Adjustment of the penetration depth
  • Very high mechanical resistance
Orotig Evo X Laser Welding Machine

Laser welding can be used for a number of jewellery making processes such as:

  • Seam welding
  • Ring resizing
  • Prong setting repairs
  • Creating bezels
  • Fixing jump rings and chains
  • Filling porosity
  • Adding earring posts

Learn more about welding

How To Use A TIG Welder

How To Use A TIG Welder

Read more
Getting To Grips With Laser Welding

Getting To Grips With Laser Welding

Read more
Jewellery Soldering: Traditional vs a TIG Welder

Jewellery Soldering: Traditional vs a TIG Welder

Read more

Specifications

EVO WHITE

orotig evowhite laser welding machine

Power supply

Single phase, 115-230 ±10%VAC, 50/60 Hz

Crystal type

Nd:YAG 7 mm bar

Power impulse and time

160 J at 25 ms

Peak power

7 kW

Mean power

75 W

Frequency of repetition

Up to 15 shots per second

Spot dimension

da 0,3 a 1,5 mm

Access control

External with display TFT 3,5” color touch-screen with inside chamber joystick

Stereo microscope

45° with 10X and cross hair (Leica)

Weight

32 kg

Dimensions (WxDxH)

52 x 68 x 34 cm

EVO X

orotig evowhite laser welding machine

Power supply

Single phase , 115-230 ±10%VAC, 50/60 Hz

Crystal type

Nd:YAG 7 mm bar

Maximum consumption

1,8 kW

Impulse energy

@1ms 9 J

Power impulse and time

225 J at 25 ms

Peak power

9 kW

Mean power

90 W

Frequency (shots per second)

40 Hz

Spot dimension

from 0,1 to 2,0 mm

Stereo microscope

LEICA 10 X 45° with haircross

External control

display TFT 7” capacitive touch screen

Internal control

Encoder in the welding chamber

Cooling system

Forced air with fan speed control, 4 lt liquid and radiator

Weight

41 kg

Dimensions (WxDxH)

510 x 793 x 553mm

How can we help

Book a free demo

Arrange a demonstration on our welding range.

Book now

Warranty

Supplied with a 2 year warranty and a 1 year warranty for the laser

Contact us

Contact us

Contact us for more information
UK: 0345 100 11 22
Email: info@cooksongold.com

Contact us

Orotig Laser Welding Equipment

Discover professional laser welding with the range of Orotig laser welding machines at Cooksongold. A range of high powered, compact desktop welding machines, the Orotig range offers the perfect solution for all your welding, soldering and repair needs.

The speed and precision of the Orotig laser welding machines are a must for jewellery making. Work on a range of projects with ease; from delicate, thin areas, to areas with stones near the location of welding, the Orotig laser welding machines are designed to allow you to achieve quick, accurate results on gold, silver and platinum.

The Orotig laser welders are fitted with a touchscreen display allowing you to easily adjust the laser functions as well as digital lighting system, connection for gas and argon, dimmable LED lighting system and even the ability for software upgrades and file storage. This is the perfect range of machines for those who want easy to use, fast and efficient results every time.
