Engraving flat sheets using the Magic E7 and S7 engraving machine is a precise and efficient process that allows for intricate designs and text to be etched onto metal surfaces. Whether you’re personalising jewellery, creating decorative pieces, or adding custom branding, this step-by-step guide will walk you through the entire process—from preparing your metal blank to completing the engraving. Let us show you show you how you can use the Magic engraving machines to achieve professional and high-quality results.
Step 1
Measure the metal blank using digital verniers and create a square template on the software. Select ‘Diamond’ from the templates on the left. Input the correct measurements, press ‘ok’ and place the metal sheet secured into the vice.

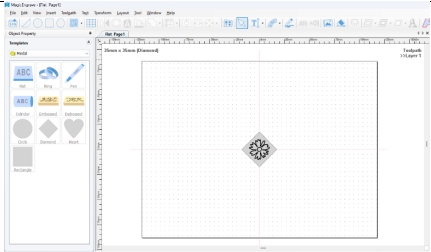

Step 2
To insert a design/text into template, click ‘Design Sample’, select ‘Deco’. Choose any design – in this case a flower. Adjust the size, fill it to the desired metal measurement and line thickness to preferred style.
Step 3
To create your tool path, select the design. Select hatching tool path and enter the engraving details, then click ‘create toolpath’.

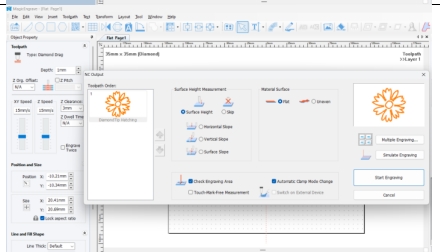

Step 4
Now send the engraving design to machine from the computer by selecting the tool path. Click ‘Magic-E7’ and click ‘start engraving button.

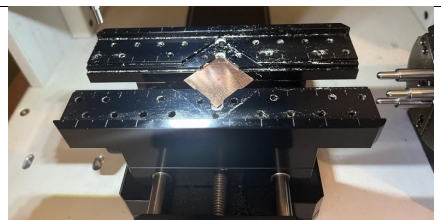

Step 5
Here, check the boundary mode by clicking and holding the arrows on the front of the machine to see the boundary area. Press the ‘play’ button on the machine this will then show engraving process. Once finished remove the sheet from the vice and its finished!

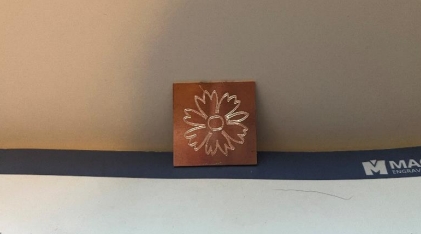

Step 6
Your engraving is now done.
By following these steps, you can successfully engrave a flat sheet with precision and detail using the E7 / S7 engraving machine. From setting up your design to finalising the engraving, each step plays a crucial role in achieving a polished and professional result. With practice, you’ll be able to create beautiful, custom engravings with ease. Now that you’ve mastered the basics, feel free to experiment with different designs and engraving settings to enhance your skills further!
